Show us your lighting setups - Part 1

[J-Chan]

cool concept and look, maybe more ambient for the background find it abit muted..



[mlchan]

May i know how you take this shot..i mean shutter speed, f number? Always wanted to try this type of output...



[J-Chan]

Vivitar 285HV at 1/16th power with 1 stop ND and 1/2 CTO gel through shoot-thru umbrella high left, another 285HV at 1/16th power with 2 cuts ND, 1/2 CTB gel and a DIY gridspot at 2 o'clock position, Canon 430EXII at 1/64th+0.7 power with Lavender gel zoomed to 105mm far back at 10 o'clock position, all triggered via Cactus V4..

Cam settings 1/13th sec, f/2.0 ISO 400, which explains the very low flash powers..



[shunzi]

creative way for the bitter lemon product shot you have Daedalus.



[sjackal]

Cool thread.



[Daedalus Trent]

creative way for the bitter lemon product shot you have Daedalus.

Thanks!
Love that drink :lovegrin:



[chalib]

Vivitar 285HV at 1/16th power with 1 stop ND and 1/2 CTO gel through shoot-thru umbrella high left, another 285HV at 1/16th power with 2 cuts ND, 1/2 CTB gel and a DIY gridspot at 2 o'clock position, Canon 430EXII at 1/64th+0.7 power with Lavender gel zoomed to 105mm far back at 10 o'clock position, all triggered via Cactus V4..

Cam settings 1/13th sec, f/2.0 ISO 400, which explains the very low flash powers..

Bro

Still waiting your review on the cactus V4 :sweatsm:



[Michaelavaloke2009]

Vivitar 285HV on cam left and right on 1/1 power, bounced off pillars. Canon 580EXII and 430EXII below cam left and right on 1/2 power, all with 1/2 CTB gels.

:thumbsup:great shot. I would try on this setting too. really inspiring to me and i love yr work.:heart:



[Numnumball]

This being the newly created section for lighting, I think a lighting setup thread is in order.. so let me share an old setup of mine..

This..

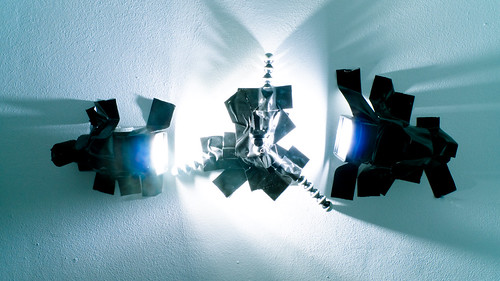

2 gridded Vivitar 285HVs top left and right at 1/16th power to light up the cam, another at the top gelled blue plus grid at 1/4th power to light up background..

Creates this..

This is very good!



[Numnumball]

Vivitar 285HV on cam left and right on 1/1 power, bounced off pillars. Canon 580EXII and 430EXII below cam left and right on 1/2 power, all with 1/2 CTB gels.

Great setup and end product:thumbsup:



[eejal]

Dude...awesome!!!



[J-Chan]

nothing too fancy, SB-800 ontop at 1/4th power, 430EXII at 1/8th, both through shoot-thrus.. my first try at off-cam lighting on medium format..

more from this shoot on my flickr stream..



[J-Chan]

2x Vivitar 285HV at 1/4th power bounced off the ceiling.. gives sort of a ringflash effect..



[sprintist]

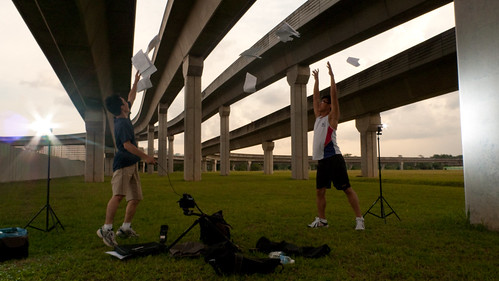

j-chan i finally can contribute something, cos i finally took behind the scene shot lol

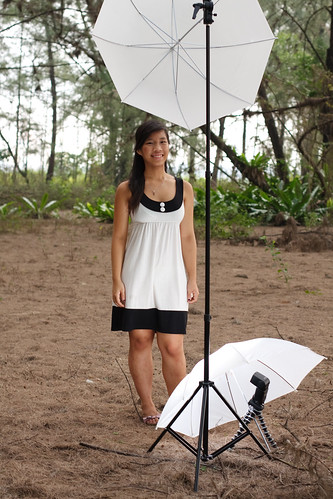

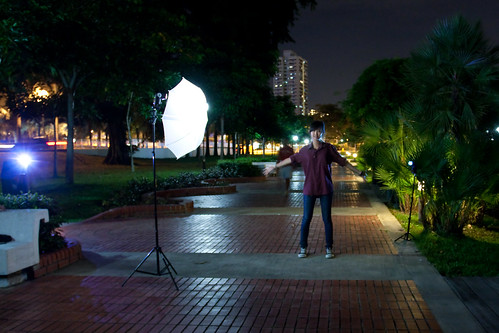

here's one which i did a few days back showing the setup here

the resulting photo looks like this

i have a more detailed description HERE maybe next time we can have more contributors to share and learn from each other



[FlipFlop]

Chance upon this website for Lighting Setup... :thumbsup: :thumbsup: :thumbsup:

www.lastoliteschoolofphotography.com



[pitik101]

Vivitar 285HV on cam left and right on 1/1 power, bounced off pillars. Canon 580EXII and 430EXII below cam left and right on 1/2 power, all with 1/2 CTB gels.

anyone can tell me the location of this shoot. I am interested in those lines.

thanks in advance



[sprewell]

punggol stn i think.



[emdimaan]

My own sets but sorry if i give the lighting setup through words only as I don't have pictures of the setup

Strobist info: 3 light set-up one on top of the bulb at approx 3 inch away at 1/1 another flash at the back of the bulb at 1/2 to create a close to real bulb light. And then a top light with CTO on top of Jore at ~1m with a white umbrella reflected at 1/16 power. 50mm F1.4 ISO400 and 1/250
Editing: Sharpening and framing
Note: Bokeh from Christmas lights hahaha

Strobist info: Single 580 EX flash at 1/4 power on top ~1m above Bren with a shootthrough umbrella triggered by an ST-E2. 1/250, 50mm F1.4 ISO400
Editing: Sharpening, framing, cropping and Noise filtering through noise ninja

Strobist Info: 2 flash set-up, 1 580 EXII with shoot thru umbrella and a CTO at 1/32 24mm at front left and 1 430EXII bare at 1/64 24mm with full red gel at the back hitting the wall. 50mm F1.4 ISO 100 1/250
Editing: Sharpness, border and cropping
Face Paint: Done by Me

Strobist Info: 3 flash setup controlled my ST-E2 (revived it) Two flash on top (~1m) at 1/32 with a reflective umbrella and a green gel and 1 flash with grid spot at front with CTO at 1/64. 1/250, 50mm, F1.4 Location: Just around the corner of Bugis Editing: Sharpening


In case you are interested on the rest of the info, you can visit my site at http://www.flickr.com/photos/30492124@N05/



[emdimaan]

Some more additional:

Strobist info: 2 flash setup, 580EII with snoot and blue gel from below left at 1/16 at 70mm (for a more linear and compact light source to prevent the spill off) and a 430EXII at 1/32 (slightly weaker power to that of the 580EX so that it can't over power the blue color for the smoke) with a shoot through umbrella and a CTO at 24mm. 1/200 ISO 100 F1.4.

Strobist info: 2 flash setup. 580 EX at front with blue gel and shoot through umbrella set to 1/16 approx. 1m away and a 430exII set at 1/64 at the back with a reflective umbrella for a slight rim light both triggered by PT-04. ISO 200 F1.4 at 1/150.

Strobist Info: 3 light setup, 1 580 EXII at the back with a reflective umbrella and a blue gel (reflective umbrella to minimize a harsh reflection which might blow out the whole background) at 1/16 at 50mm zoom and then a 430 EXII with a CTO to warm up the skin tone at 1/32 at 24mm zoom and a 430 EX below on low power at 1/64 and 50mm pointing at the bubbles (with a snoot) to light them up. Bokeh is made from small candles that I bought for 4 sing dollars a set . ISO 100 1/400s (at high speed sync) and F1.4

Strobist info: Two flash set-up 1 at front with a shoot through umbrella (with full CTO) at 1/16 at 24mm zoom and another at the back with a gridspot (with a CTB) at 1/8 and 50mm zoom. Both triggered by ST-E2 set at high speed sync with shutter speed at 1/800 and aperture at F1.4



[sjackal]

Some great works there Endimaan.
