One of the bugbear of 3.5mm mini phono jack is connector noise if you jiggle-jangle the cable.

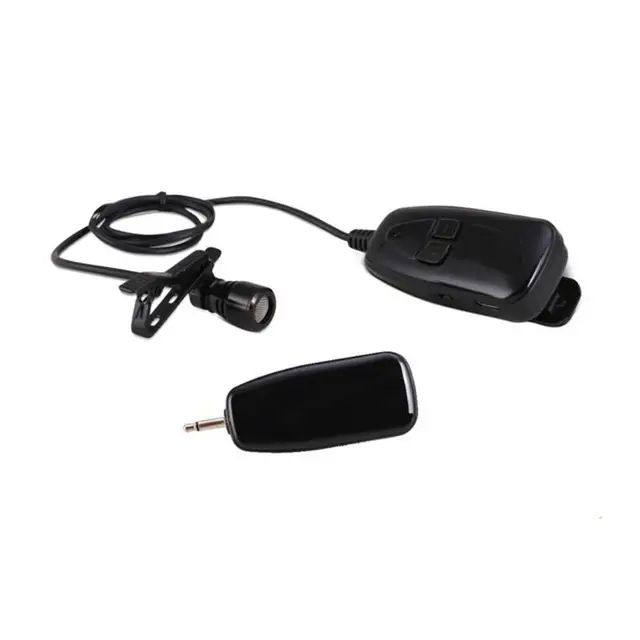

This wireless lav kit takes out most of the cable connections to minimise the noise. The result - a clever minimalist design that is almost weightless in your pocket and takes up zero coldshoe real estate. (take a hint, Rode/Senny!) Plugs directly into your camera or use an L-adapter. Internally powered. Perfect for gimbal work. (receiver is less than 35gm)
$22 from Aliexpress
Video link: https://world.taobao.com/item/554658840764.htm
Product specifications:
Model: XXD-G18L
Microphone type: capacitive
Pairing: automatic pairing
Sampling frequency: 16KS/s
RF power: 10dBm
Carrier frequency: 2400-2483MHz
Modulation mode: GFSK
Voltage: DC3.5-5.5V
Product color: Black
Size: 85 X 25 X 10mm/3.35 X 0.98 X 0.39"
Net weight: about 34g
Gross weight: about 132g
Transmitter specifications:
Audio signal: 16 bit, 44 KHz
Pairing method: Automatically
Frequency range: 20-20KHZ
Transmittion method: bidirectional 2.4 GHz frequency hopping
Power source: built in lithium battery
Power consumption current: 0dBm ＜ 50 mA
Working distance: ＜ 30 meters (barrier free)
Receiver specifications:
Audio signal: 16 bit, 44 kHz
Pairing method: Automatcially
Frequency range: 20-20KHZ
Transmittion method: 2.4 GHz
Power source: built in lithium battery
Power consumption current: 0dbM ＜ 50 mA
Working distance: ＜ 30 meters (barrier free)
This wireless lav kit takes out most of the cable connections to minimise the noise. The result - a clever minimalist design that is almost weightless in your pocket and takes up zero coldshoe real estate. (take a hint, Rode/Senny!) Plugs directly into your camera or use an L-adapter. Internally powered. Perfect for gimbal work. (receiver is less than 35gm)
$22 from Aliexpress
Video link: https://world.taobao.com/item/554658840764.htm
Product specifications:
Model: XXD-G18L
Microphone type: capacitive
Pairing: automatic pairing
Sampling frequency: 16KS/s
RF power: 10dBm
Carrier frequency: 2400-2483MHz
Modulation mode: GFSK
Voltage: DC3.5-5.5V
Product color: Black
Size: 85 X 25 X 10mm/3.35 X 0.98 X 0.39"
Net weight: about 34g
Gross weight: about 132g
Transmitter specifications:
Audio signal: 16 bit, 44 KHz
Pairing method: Automatically
Frequency range: 20-20KHZ
Transmittion method: bidirectional 2.4 GHz frequency hopping
Power source: built in lithium battery
Power consumption current: 0dBm ＜ 50 mA
Working distance: ＜ 30 meters (barrier free)
Receiver specifications:
Audio signal: 16 bit, 44 kHz
Pairing method: Automatcially
Frequency range: 20-20KHZ
Transmittion method: 2.4 GHz
Power source: built in lithium battery
Power consumption current: 0dbM ＜ 50 mA
Working distance: ＜ 30 meters (barrier free)
