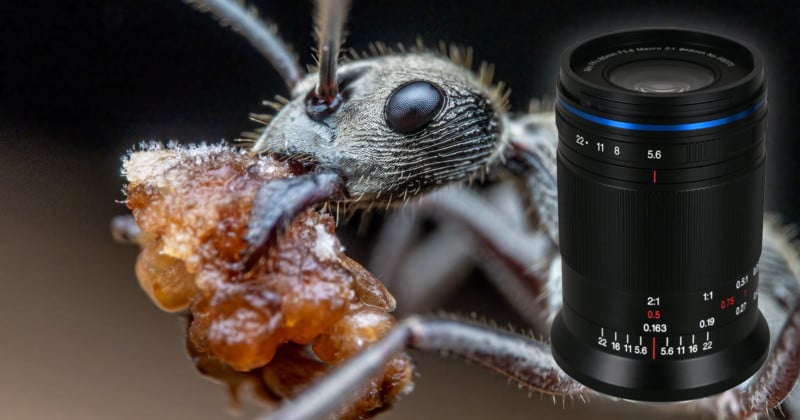

A macro photo of an ant with a Laowa 85mm macro lens superimposed


The new Venus Optics Laowa 85mm f/5.6 2x Macro lens is one of the smallest macro lenses that I’ve ever used for a full-frame sensor. It is even smaller than the Laowa 50mm f/2.8 2:1 for Micro Four Thirds, and that’s no mean feat!

The reason for a small f/5.6 lens is that very few photographers ever take macro shots at f/2.8. Of course, the small size does come with some drawbacks. In this field review, I’ll show the results from this lens and explain the practical considerations you’d have before deciding if this lens should go into your camera bag.

Equipment Used for Field Test


For this field test, I used a Nikon Z7 II kindly loaned to me from photographer Chris Ang and the sample lens was loaned from Laowa.

  • Nikon Z7ii
  • Laowa 85mm f/5.6 2x Ultra Macro APO
  • Meike MK320
  • Dual LED Headlamp for Focusing Light
Should You Get This Lens?


As with every lens review, there are a number of pros and cons to each lens. Let’s get into the details here.

Lens Size and Weight

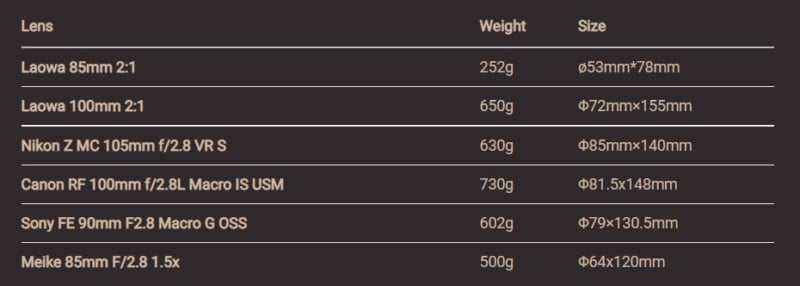

The Laowa 85mm F/5.6 2x is small and light, there’s no doubt about it. Here’s a quick comparison between other macro lenses for full-frame mirrorless mounts.

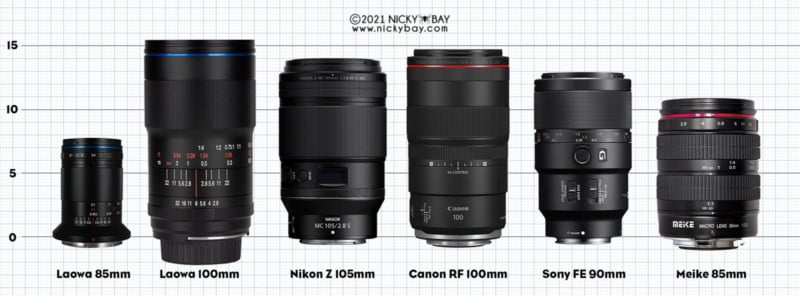

A size comparison between camera lenses


A chart comparing the size of macro lenses.


The Laowa 85mm is clearly a tiny and powerful beast, with its weight at less than half of that of most competitor lenses.

Autofocus


The Laowa 85mm is a completely manual lens with no electronic contacts. There is no auto-focus, but that really isn’t needed for high magnification work beyond 1:1. I recommend fixing the focusing ring at the desired magnification before taking the shot and moving the camera in slowly to get the subject in focus.

Aperture Coupling


As a manual lens with no electronic contacts, there is, unfortunately, no aperture coupling. This means that the lens is stepped down at the current aperture setting when composing your photo. This is important for a few reasons.

Dark image

Without a wide-open aperture while focusing, the image is very dark. Fortunately for most mirrorless cameras, disabling the live view exposure simulation alleviates that problem.

Less precise focus

Another issue with stepped-down focusing is the loss of precision in the depth-of-field. The deeper DOF while focusing means that it is more difficult to get precise focus as more of the subject appears to be in focus. This will require a bit of experience in handling this lens to overcome. It is also mitigated slightly with focus peaking features on the camera.

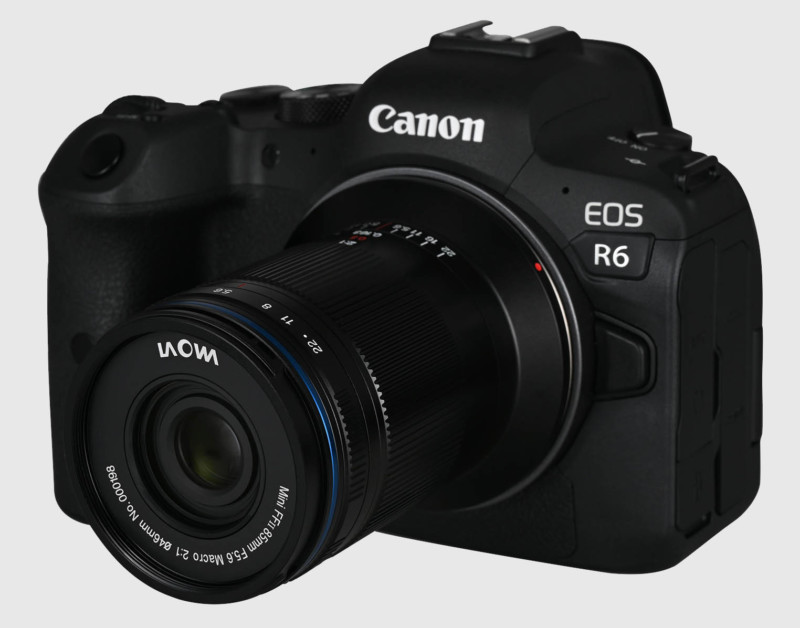

The Laowa 85mm f/5.6 2x mounted on a Canon R6 mirrorless camera.

Aperture ring position

The aperture ring is at the tip of the lens. Depending on your flash diffuser design, this aperture ring might be blocked by the diffuser, making it difficult to adjust the aperture while looking at the numbers on the lens. After some experimenting, I found that it was easier to turn the ring to f/22, and then click it down once for f/16, or twice for f/11. This way, there is no need to look at the aperture number.

Lens Diameter


A small lens diameter makes it easier for us to approach subjects without knocking into too many things. It also allows for better lighting for close-ups, since lenses with big diameters tend to block out light at the shortest working distance. The Laowa 85mm f/5.6 shines in this aspect with a filter ring of just 46mm. This is even smaller than the Laowa 50mm f/2.8 2x for MFT, which has a filter ring size of 49mm.

An important advantage of a smaller lens diameter is that using the Raynox DCR-250 would not be subject to vignetting. Vignetting makes these close-up filters unusable for big lenses like the Laowa 100mm.

Magnification


Like most Laowa ultra macro lenses, the Laowa 85mm f/5.6 focuses from infinity to 2x. The working distance at 2x is at a comfortable 69mm. To boost your magnification, just attach a Raynox DCR-250 and you’ll get a decent magnification of about 4x.

Focus Throw


The focus throw for this lens is shorter at approximately 160° when compared to other Laowa macro lenses like the Laowa 50mm 2:1 for MFT, which had an amazing focus throw of 215°. This won’t be a problem if you fix the focusing ring and move your camera in and out to get the subject in focus. But if you work on a tripod, the precise focus will be more difficult to attain. Then again, there is little reason to go for a lightweight lens if you are working on a tripod.

Working Distance


The working distance of this lens is 96mm at 1x, and 69mm at 2x. These are very comfortable numbers to work with. A relatively small flash diffuser would also suffice to cover the subject well.

Internal Focusing


With internal focusing and no recessed front lens element, less dust would get into the lens. Also, skittish subjects like jumping spiders would not be able to jump into any recessed areas of the lens.

Image Quality


The Laowa 85mm f/5.6 is very sharp, even with a dual-glass element Raynox DCR-250 attached. Areas of high contrast also show minimal to no signs of chromatic aberration. I personally use F/11 for 1x to 2x magnification and F/16 for lower magnification shots. This minimizes diffraction and light loss while maximizing DOF.

Comparison with Other Macro Lenses


The only other full-frame lenses that can focus from infinity to 2x are the Laowa 60mm f/2.8 2x and Laowa 100mm f/2.8 2x. The Laowa 85mm f/5.6 2x is clearly a better choice than the Laowa 60mm due to the much smaller size. The Laowa 100mm has a slight advantage for the Nikon F mount with its aperture coupling capability. Otherwise, the Laowa 85mm is the obvious lens to go for.

Price


The launch price for the Laowa 85mm f/5.6 2x is $449 for Nikon Z, Canon RF, and Sony E mounts, and $499 for Leica M mount. It is just a little bit cheaper than the Laowa 100mm and a little bit more expensive than I expected. But with the APO design and 3 extra-low dispersion lenses, the price is fair. There is also no other similar lens in the market to compare with!

Recommended Use


I would personally pair the Laowa 85mm f/5.6 2x with a Raynox DCR-250. This covers a very good range for most macro subjects with a full-frame width of 8mm at 2x and 55mm at infinity. Using a small flash like the Meike MK320 matched with a concave diffuser and reflector would result in a very effective and compact setup.

Field Test


As with most of my other lens reviews, I am focusing on practical use and field tests rather than studio tests based on specifications. A macro lens review must be based on its intended use. I tested this lens over 3 short sessions, but most of it was in the last session as I had spent the first 2 sessions fumbling with camera settings that I was unfamiliar with.

Camera Settings


I used the settings below for most shots in this review.

  • ISO 250
  • Shutter 1/100s to 1/250s
  • Aperture f/11 (1x to 2x) or f/16
  • Flash power ranges from 1/32 to 1/16

I started simple at 1.25x on this shield bug.

A shield bug

Shield bug (Cantao ocellatus)

Then I attempted close-ups at 2x, cropped.

A shield bug

Shield bug (Cantao ocellatus). For those interested, I have a checklist of Shield Bugs & Stink Bugs.

As expected, stepping down to f/8 or f/11 was a little harder to focus as it was difficult to see where the exact focal plane was. This shot was pretty messed up as I shot it in low-quality JPEG and the white balance was way off:

A jumping spider

Jumping spider (Siler semiglaucus)

At 1x, I tried f/16 but the light loss was significant and there was a bit of diffraction.

A macro photo of an ant

Ant (Polyrhachis sp.)

I also had some test shots at about 0.25x on this common wolf snake at f/16. Tack sharp!

A common wolf snake

Common wolf snake (Lycodon capucinus)

One of the key features of this lens is its 2x magnification so most of my shots would be at its maximum magnification. This was shot with the Raynox DCR-250 attached at f/11:

A macro photo of a jumping spider

Jumping spider (Pystira ephippigera). If you like jumping spiders, visit my Salticidae Checklist: Jumping Spiders

This treehopper stood pretty still, so I was able to do a stack of 3 shots for this photo:

A macro photo of a treehopper

Treehopper (Membracidae). For more photos of treehoppers, check out my Membracidae Checklist

I found lots of pseudoscorpions. Those familiar with these arachnids would know how small they are. This individual has a mite attached to it. Approximately 50% crop.

A macro photo of a pseudoscorpion

Pseudoscorpion (Pseudoscorpionida)

This stalk-eyed fly was always on the move, so stacking wasn’t possible. At f/11, the DOF at this magnification is pretty thin, so only 1 eye was in focus.

A stalk-eyed fly

Stalk-eyed fly (Diopsidae)

I was pleasantly surprised to find this owlfly larva nestled comfortably on the fiber of a mossy rope. It was really wet, but there’s so much detail on its body!

A macro photo of an owlfly larva

Owlfly larva (Ascalaphidae)

There were lots of harvestmen perched on the railings, so I did a 5-shot stack on this individual at maximum magnification.

A macro photo of a harvestman

Harvestman (Opiliones)

These red maggoty springtails are really beautiful when viewed up close, like little gummy worms.

A macro pohto of a red springtail

Red springtail (Neanurinae)

This shot is out of focus as I couldn’t get these little guys to stop moving. But… so cute!

A macro photo of a black springtail

Black springtail (Pseudachorutinae)

This is a poorly processed stack from 3 shots. But the details on the beetle’s elytra are pretty much retained!

A macro photo of a leaf beetle

Leaf beetle (Chrysomelidae)

Some of these shots have missed frames in the stack due to problems with my camera settings. Purely my problem as I was new to the camera.

A macro photo of a planthopper nymph

Planthopper nymph (Fulgoroidea)

Found a huntsman spider exoskeleton, perfect subject for testing sharpness!

A macro photo of a huntsman spider

Huntsman spider moult (Pandercetes sp.)

During my night shoot, Melvyn kindly pointed me to this trilobite beetle. Look closely and you’d see a little springtail on top of it:

A macro photo of a trilobite beetle

Trilobite beetle (Platerodrilus ruficollis). For more information on these beetles, check out Platerodrilus Checklist: Trilobite Beetles

Close up of its head at maximum magnification. I was happily getting used to this lens!

A macro photo of a trilobite beetle

Trilobite beetle (Platerodrilus ruficollis)

Close up of its dorsum. It was a really wet night and raining half the time, hence the water droplets.

A macro photo of a trilobite beetle

Trilobite beetle (Platerodrilus ruficollis)

And one of my favorite angles for most trilobite beetles!

A macro photo of a trilobite beetle

Trilobite beetle (Platerodrilus ruficollis)

Just one log away, I found 2 other trilobite beetles of a different species. Same same but different.

A macro photo of a trilobite beetle

Trilobite beetle (Platerodrilus ngi)

On one of the logs, I found this highly cryptic mud spider. It was about 5mm, an ideal size for this setup!

A macro photo of a mud spider

Mud spider (Cryptothele sp.)

Still on the same log was this black pill cockroach. These little guys conglobulate when disturbed, like pill bugs and pill millipedes.

A macro photo of a pill cockroach

Pill cockroach (Perisphaerus sp.)

Amazingly, this bug is pretty common but this is the first time that I’ve ever photographed it. I’ve seen it on numerous occasions in the past but never had my camera with me. Tilt your head to see the “man-face”. This is also often called the Elvis Presley bug.

A macro photo of a man-faced stink bug

Man-faced stink bug (Catacanthus incarnatus)

Vince kindly showed me this scale insect, probably immature or a female.

A macro photo of a scale insect

Scale insect (Monophlebidae)

The only way to see its eyes, from beneath!

A macro photo of the underside of a scale insect

Scale insect (Monophlebidae)

This is a very common derbid planthopper. Interestingly, we’d only see its pseudopupils in the day.

A macro photo of a planthopper

Planthopper (Derbidae)

Also found this super tiny treehopper nymph. It kind of mimics a thorn and is often accompanied by ants who offer it protection. In turn, it produces sugary substances for the ants in a symbiotic relationship. This is from a single shot and heavily cropped.

A macro photo of a treehopper

Treehopper (Membracidae)

This huntsman spider was busy with its prey on a tree, so it was an easy target. Just one shot for testing.

A macro photo of a huntsman spider

Huntsman spider (Heteropoda sp.) For more huntsman spiders, check out my Sparassidae Checklist

This moth-like planthopper had see-through membranes on its wings, so I positioned a flash behind it. The points of high contrast showed little to no chromatic aberration.

A macro photo of a moth-like planthopper

Moth-like planthopper (Ricaniidae)

The fingerprint ant is great for highlighting details. Single shot, cropped.

A macro photo of a fingerprint ant

Fingerprint ant (Diacamma sp.)

Found another individual bringing food back to its nest. This is also single shot following a moving subject.

A macro photo of a fingerprint ant

Fingerprint ant (Diacamma sp.). For those of you interested in ants, visit the Formicidae Checklist.

These planthopper nymphs were about 4 to 5mm in size, but there are lots of details on their bodies!

A macro photo of a planthopper nymph

Planthopper nymph (Fulgoroidea)

Interestingly, I found several of these red velvet mites on fallen logs.

A macro photo of a red velvet mite

Red velvet mite (Trombidiidae)

Finally, I was lucky to get these 2 planthopper nymphs together and in focus. The small one was walking around and only perched in position for a few seconds before walking off again. The fireworks-like waxy tails are often a treat to photograph!

A macro photo of planthopper nymphs

Planthopper nymphs (Fulgoroidea)
Conclusion


This is a limited field review with photos from three short field trips, during which, most of the time was spent getting used to the camera body and its settings. Despite this, most of the initial issues faced could be overcome and I got quite comfortable with using the lens. To see the other photos, I have compiled them into a Flickr album.

Pros

  • Wide focusing range from 2x to infinity
  • Ridiculously small and light-weight for a full frame lens
  • Decent working distance
  • Great image quality, sharp with minimal CA
  • Pairs very well with Raynox DCR-250 or Raynox DCR-150 without vignetting

Cons

  • No aperture coupling
  • No autofocus
  • Short focus throw between 1x and 2x

The Venus Optics Laowa 85mm f/5.6 2x is a tiny yet powerful lens. It is sharp, compact, lightweight, and produces great images. It is just shy from being perfect due to the lack of aperture coupling, something that I wish would make more progress in Laowa’s macro lens lineups.

You can order the lens directly from Venus Optics or MacroDojo — purchasing via MacroDojo helps me out a little bit.
